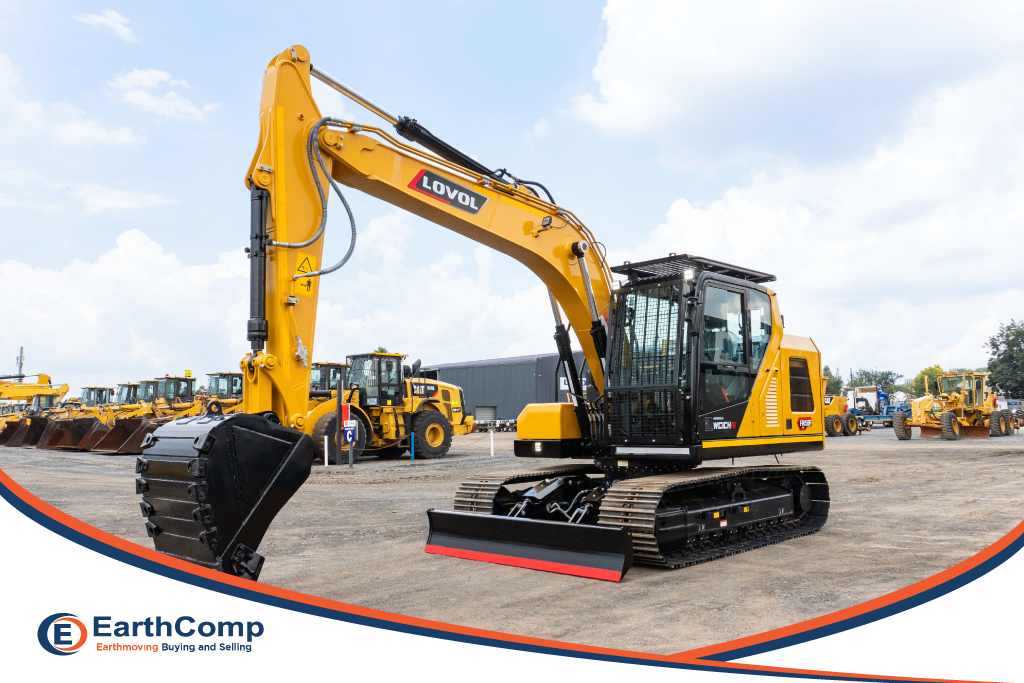

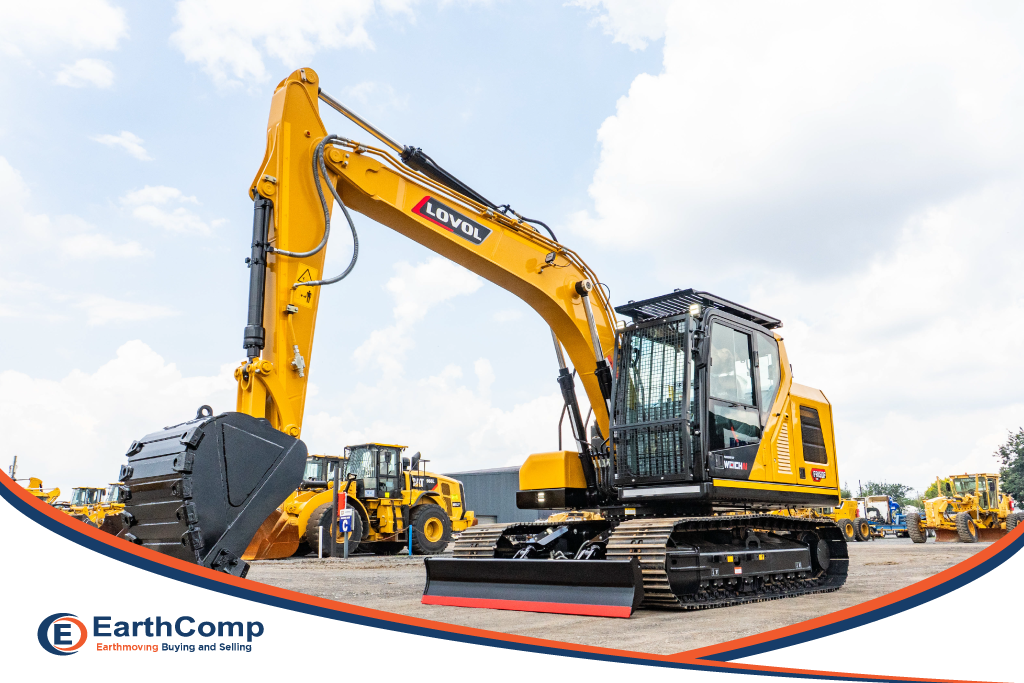

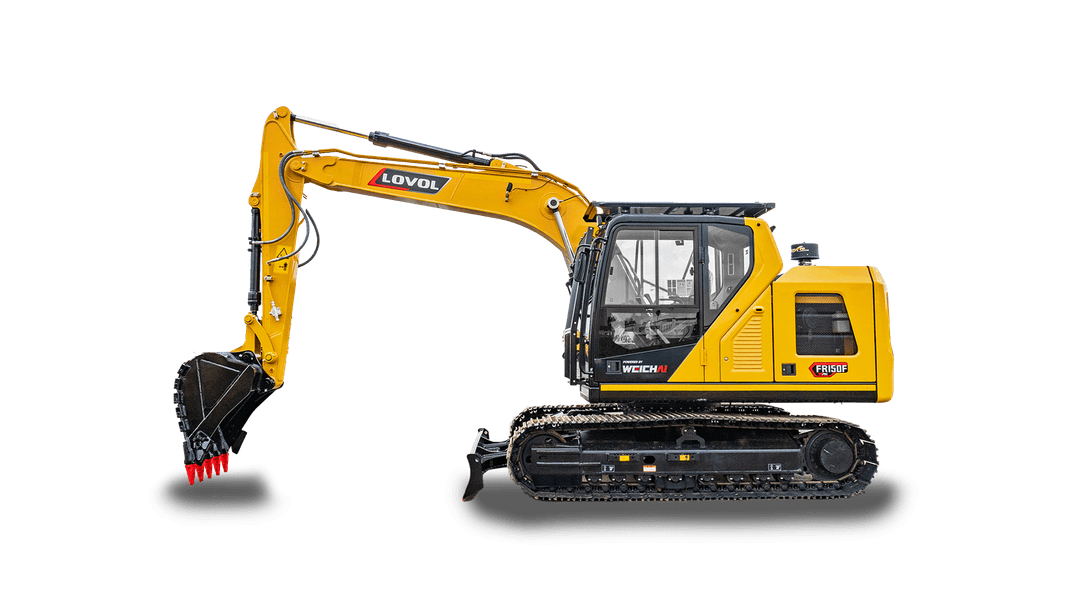

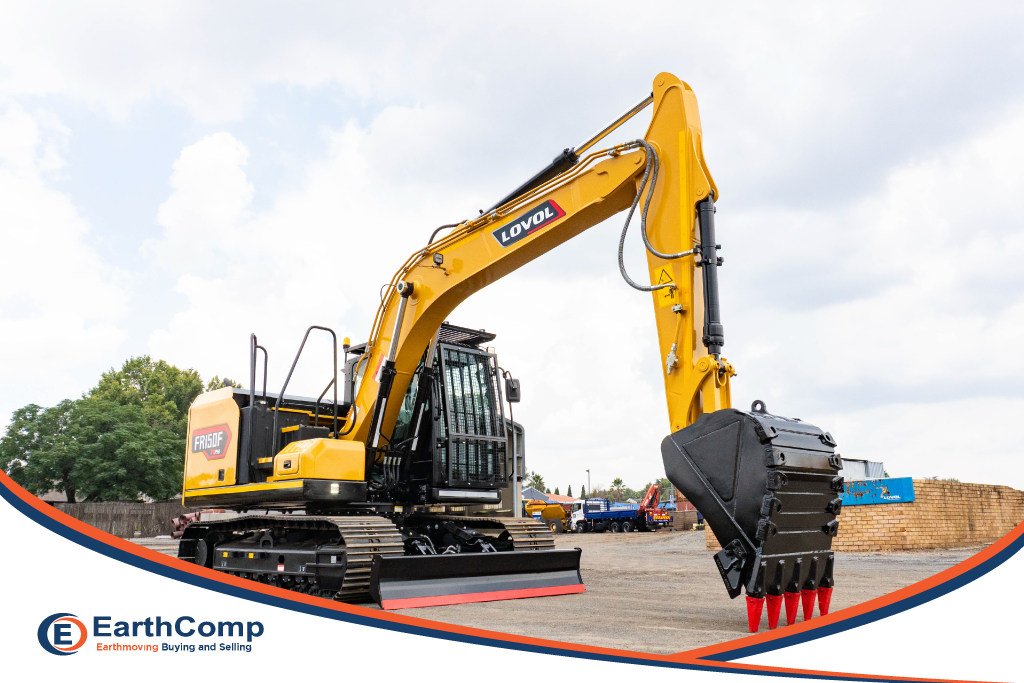

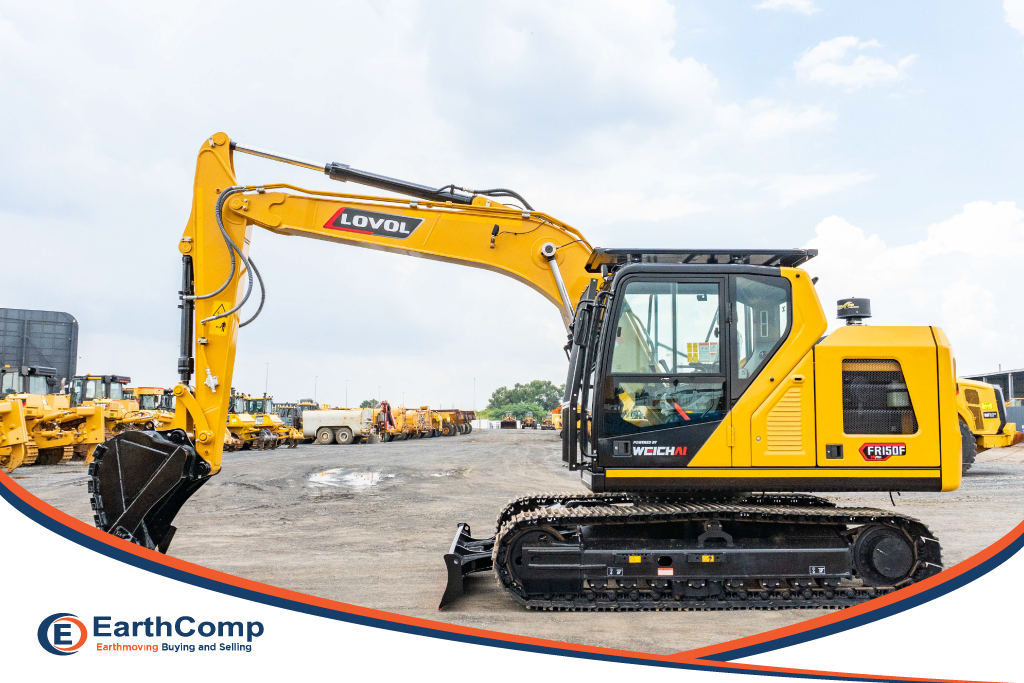

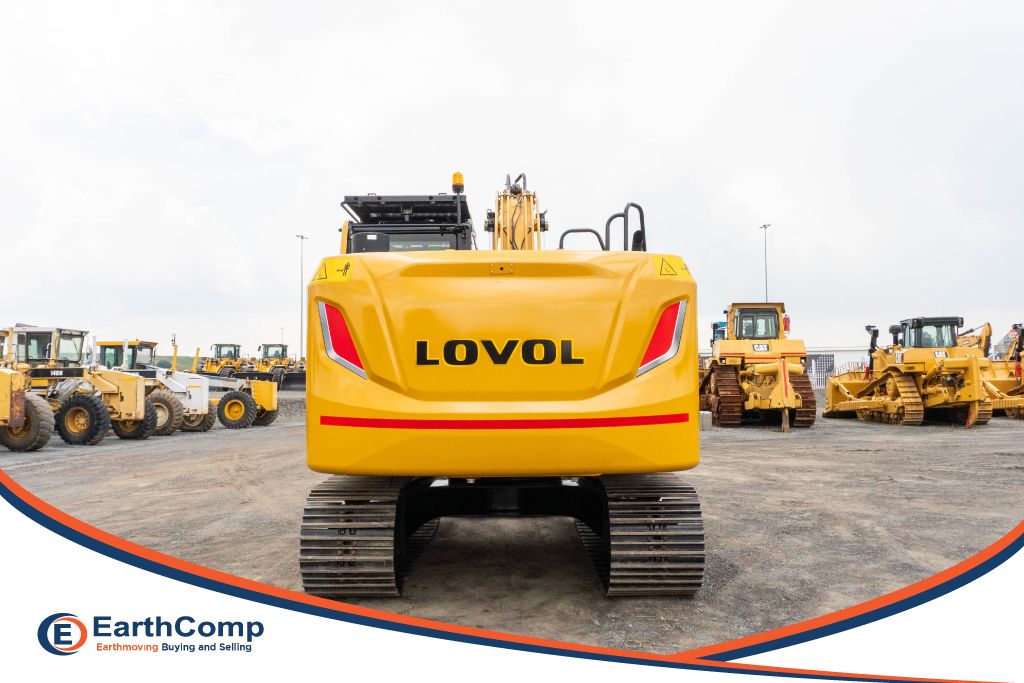

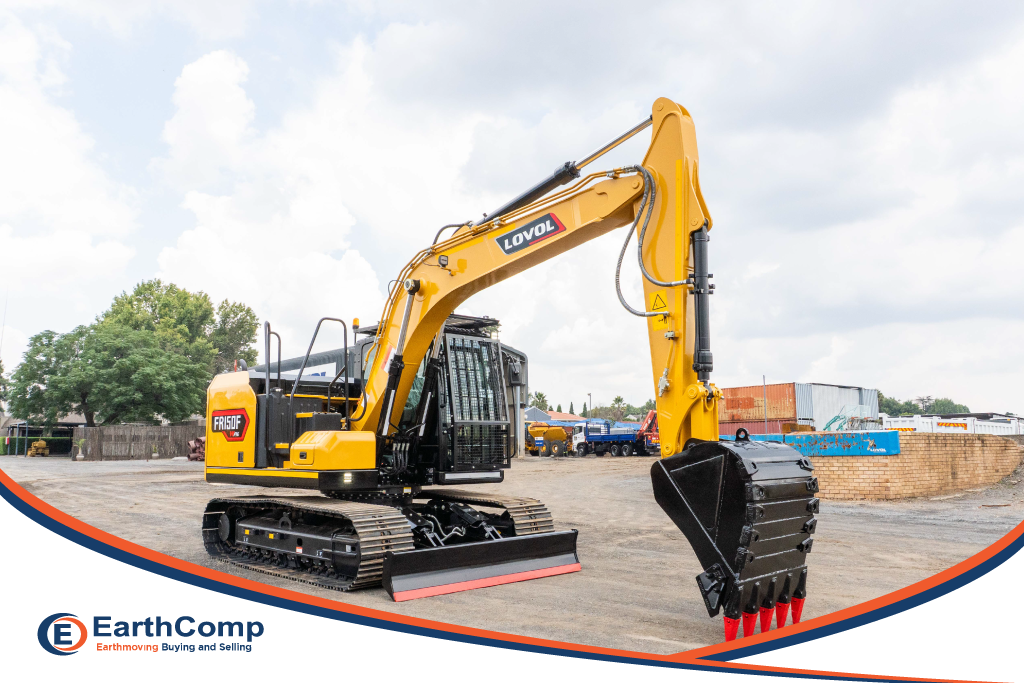

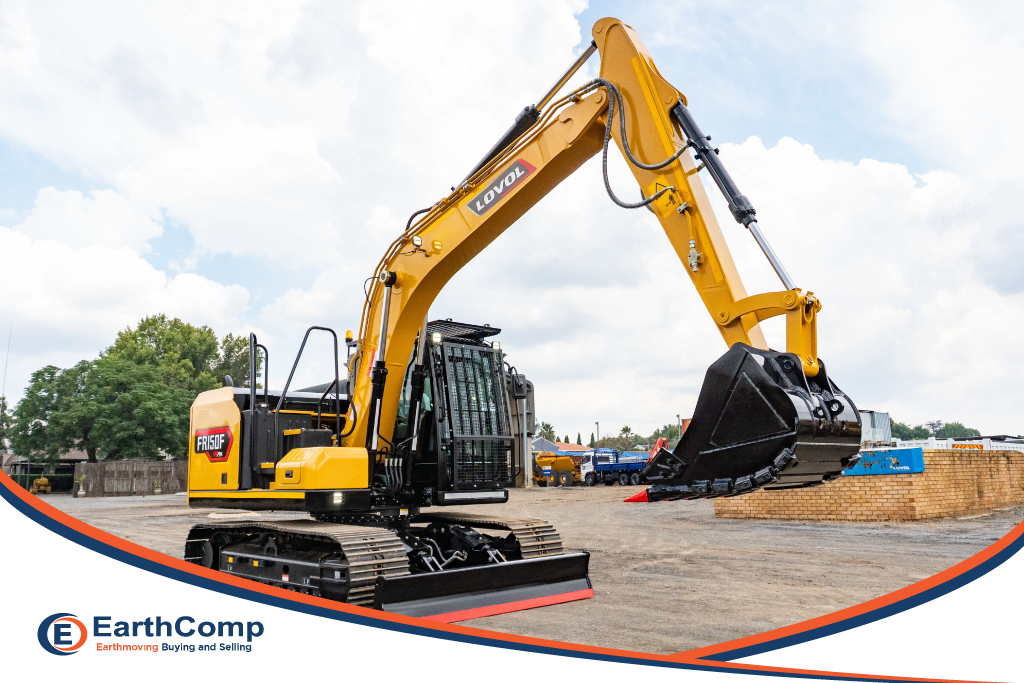

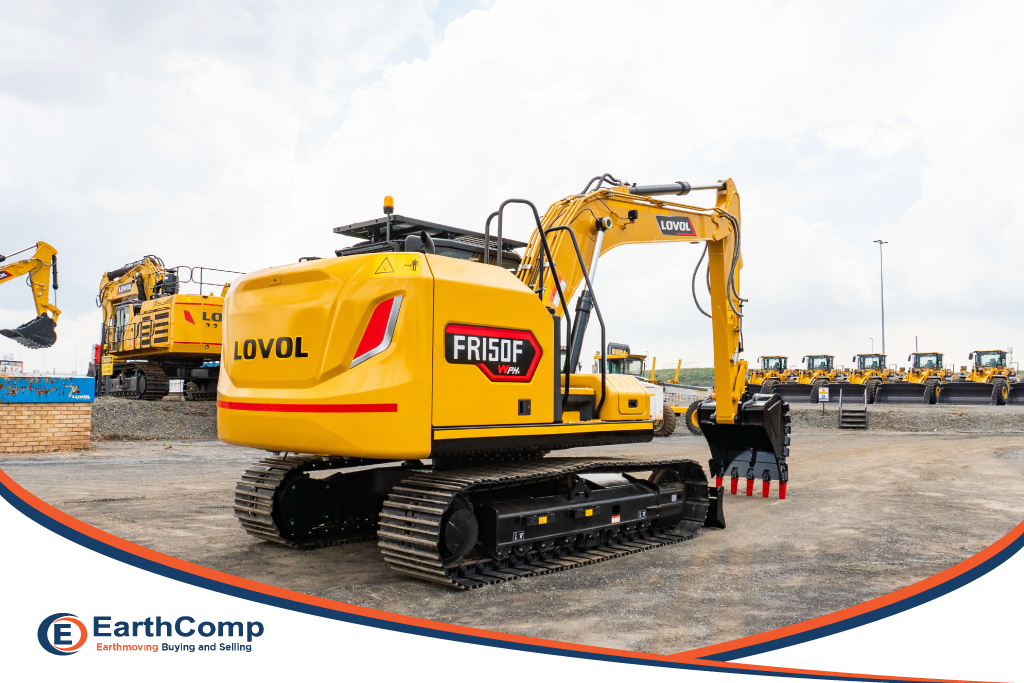

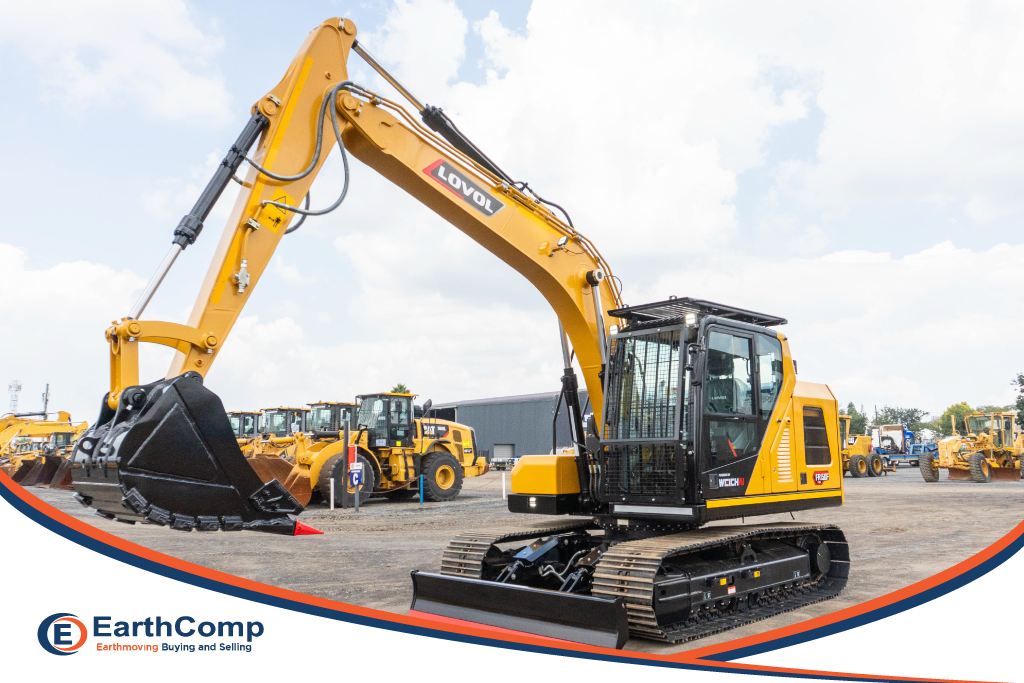

LOVOL FR150F
FR150F
Engine
Weichai 92Kw/2200 Rpm
Bucket Capacity
0.6m³
Operating Weight
15,050 Kg
Specification
Standard Piped for Attachments
| Operating Weight | 15050kg |
| Rated Bucket Capacity | 0.6m 3 |

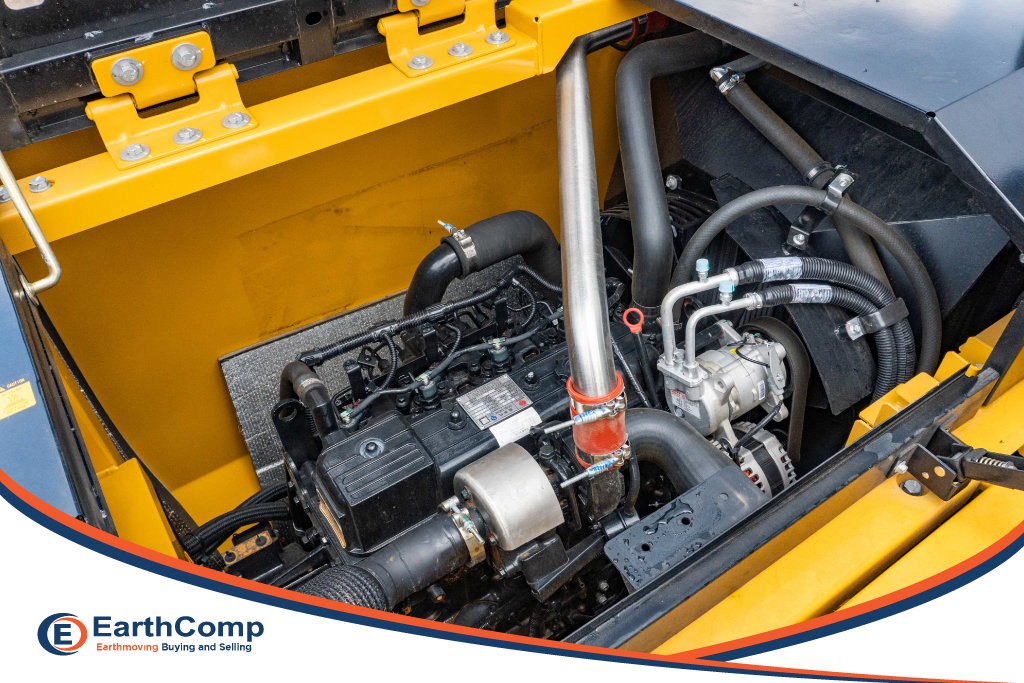

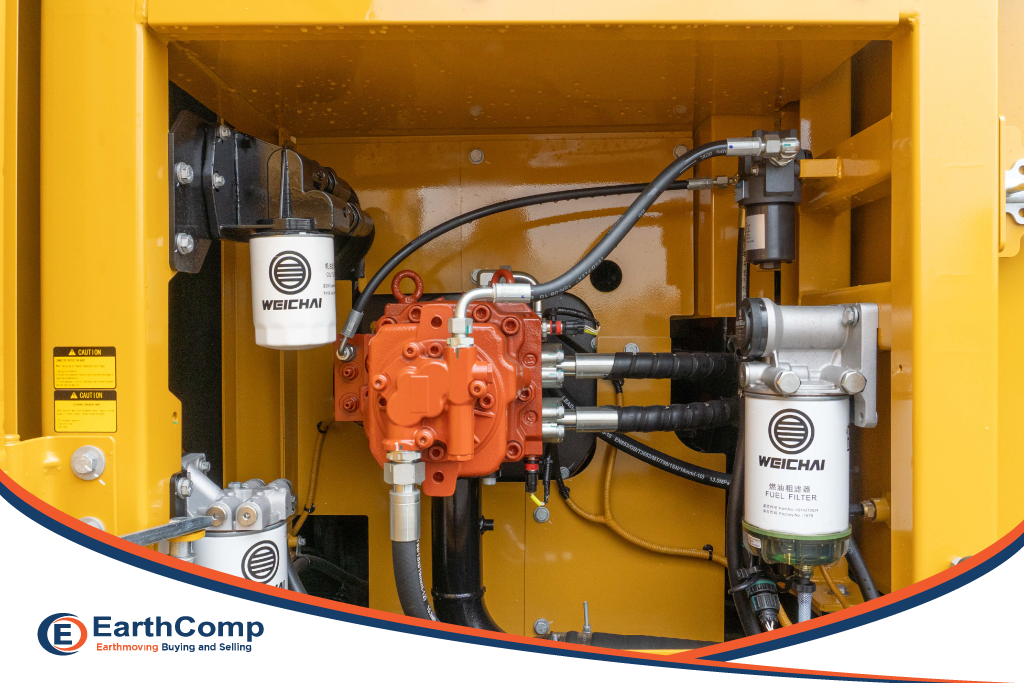

| Model | Weichai WP4.1 |
| Type | 4-cylinder, Diesel |
| Power | 92kw / 2200 Rpm |
| Bore & Stroke | 105x125mm |
|
Main |
Linde |
| Main Valve | Linde |
| Swing Motor | Linde |

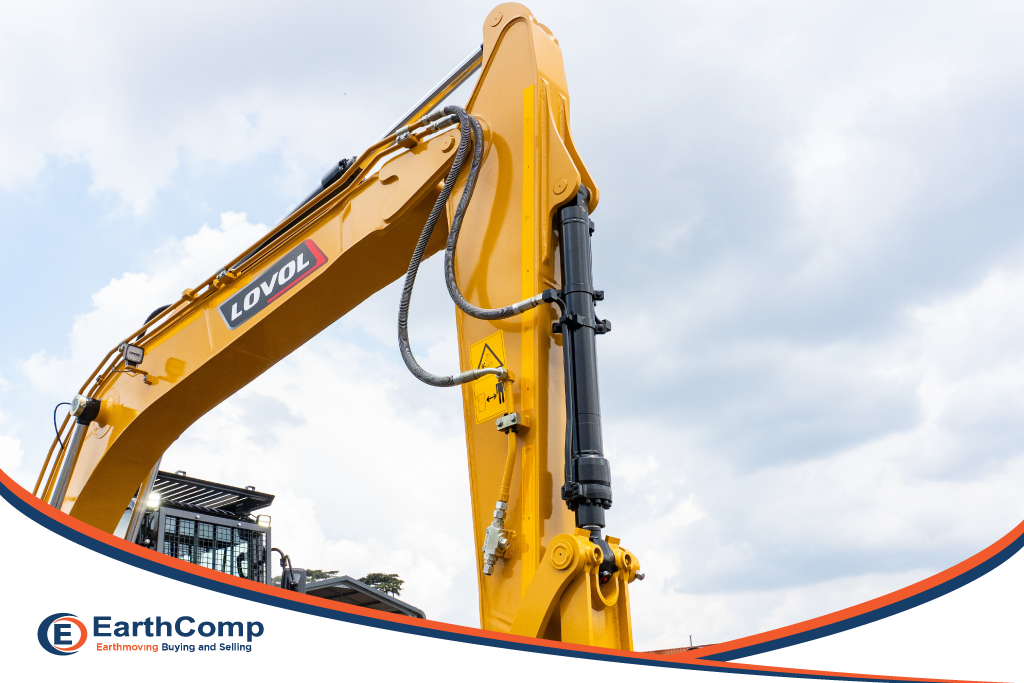

| Boom Cylinder | Hengli |
| Bore | 75mm |
| Stroke | 105mm |
| Stick Cylinder | Hengli |
| Bore | 80mm |
| Stick | 115mm |
| Bucket Cylinder | Hengli |
| Bore | 65mm |
| Stroke | 95mm |
| Travel Circuit | 34 MPa |
| Implement Circuit | 37 MPa |
| Swing Circuit | 26 MPa |
| Pilot Circuit | 4 MPa |
| Hydraulic Piping | Standard |
| Pump Flow | 128 MPa |
| Pump Pressure | 34 MPa |

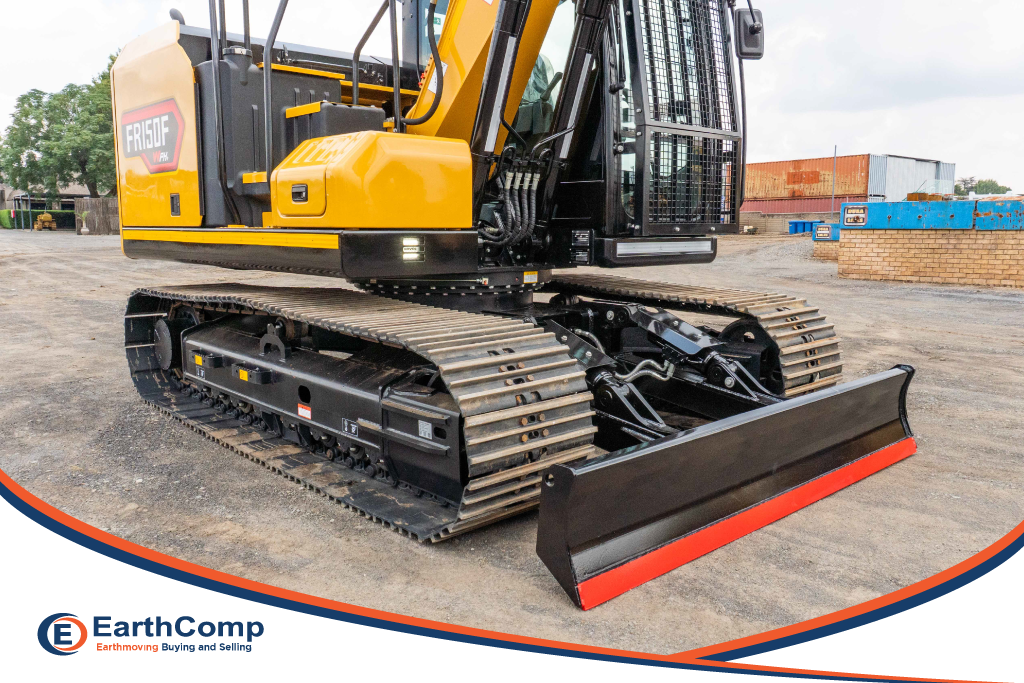

| Frame | X-Frame |
| Rail Distance | 2000mm |
| Track Width of Shoe | 500mm |
| Undercarriage Width | 2500mm |
| Track Length | 3615mm |
| Number of Shoes | 43 |
| Number of Carrier Rollers | 1 |
| Number of Track Rollers | 8 |
| Travel Motor | Eddie |
| MAximum Travel Speed | 5.4 km/h |

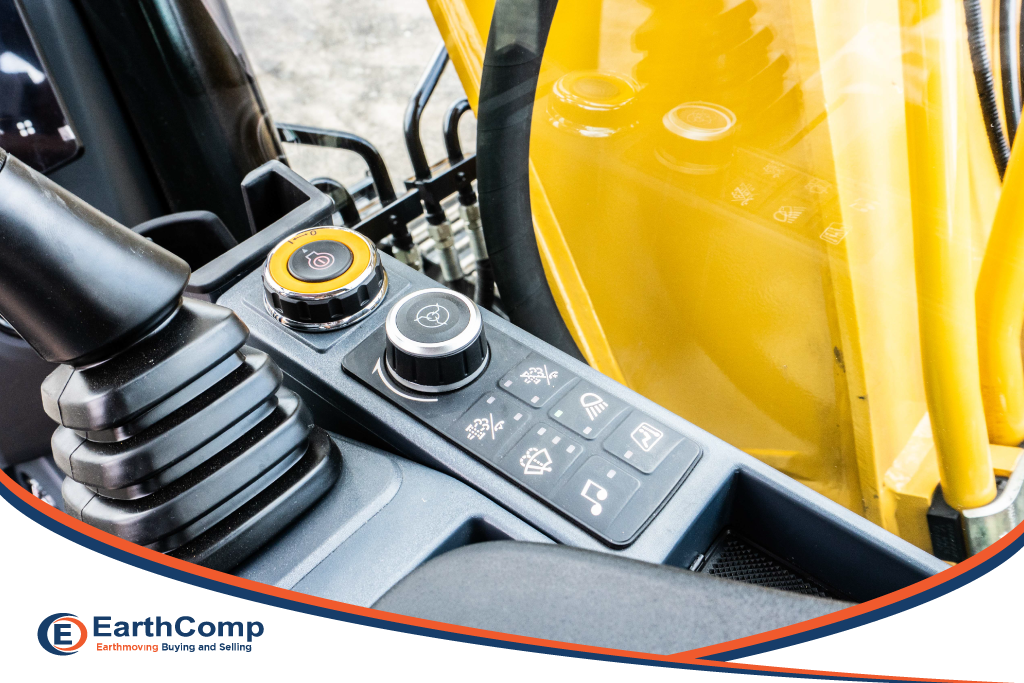

| Steering Control | 2 Levers / Pedals |
| Drive Method | Hydrostatic |
| Max Pressure | 34 Mpa |
| Drive Method | Hydrostatic |
| Swing Speed | 10.5 r/min |
| Swing Circle Lubrication | Grease |
| Swing Lock | Oil-Disc Brake |
| Swing Reduction | Planetary Gear |

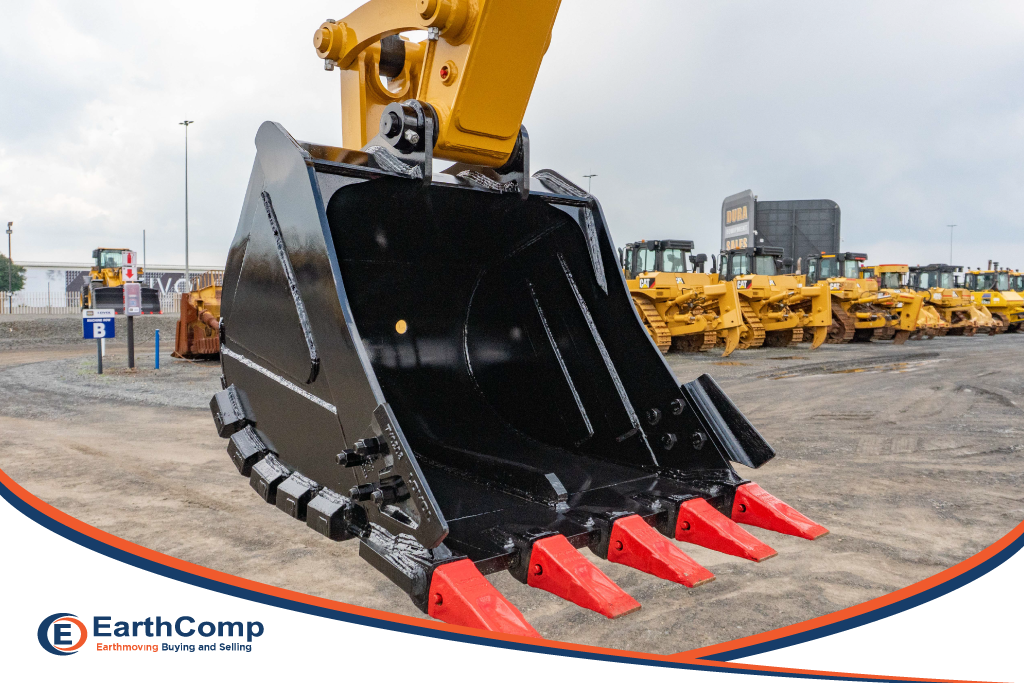

| Bucket Type | General Purpose Bucket |
| Bucket Capacity | 0.6m 3 |
| Bucket Options | Rock/Trenching Bucket |
| Boom Length | 4600mm |
| Stick Length | 2500mm |
| Fuel Tank | 240L |
| Cooling System | 4L |
| Engine Oil | 14L |
| Swing Motor | 1L |
| Final Drive | 2L |
| Hydraulic Tank | 165L |
